Doorhan Design Continuous Production Line for PUR Composite Panels for Sectional Doors and Fencing Panels (2018)

Sale Type:

Online Auction

Sale Date:

Thursday 21 September, 11:00am BST


Unit 1, Dunlop Way, Queensway Industrial Estate, Scunthorpe, North Lincolnshire, DN16 3RN

Viewing Information:
Strictly by Prior Appointment

On Behalf of a Major Finance Company

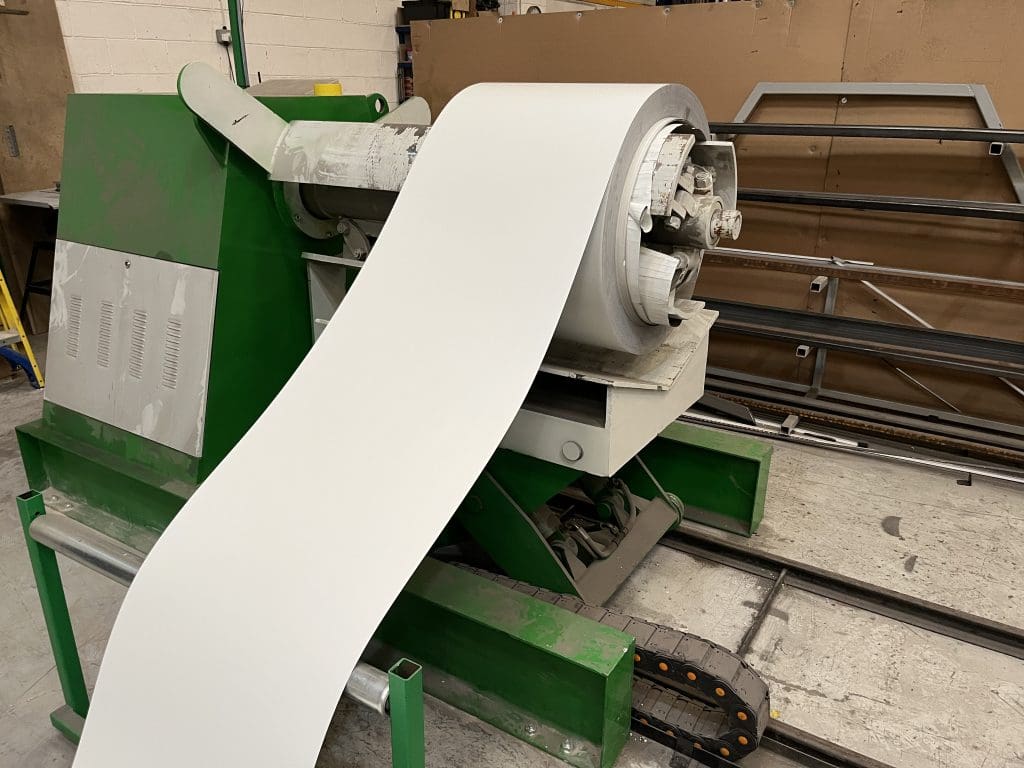

  • 1: BRADBURY / PUMA Automatic Electro-Mechanical Mild Steel Sheet Roll/ Web Decoiling machine, Serial No. DUS-011-6-1, maximum roll width 1250mm, max 5 tons capacity roll, currently 0.35mm Gauge Mild Steel Sheet
  • 1: BRADBURY / PUMA Automatic Electro-Mechanical Web Fed “Wood Grain” Embossing / “Water Ripple” Embossing Sheet Top Face Rolling Press, Serial No. DUS-011-6-2, with Stretch Wrap Plastic Film top face application infeed head
  • 1: HENNECKE OMS Automatic Electro-Mechanical Web Fed Vertical Downstroking Cut-to-Length Coil Guillotine Head, Serial No. DUS-011-6-3,With Digital Control Panel, Side Trimming Slitting Rolls, and 3: DOORHAN Steel Framed Mobile cut sheet transfer tables

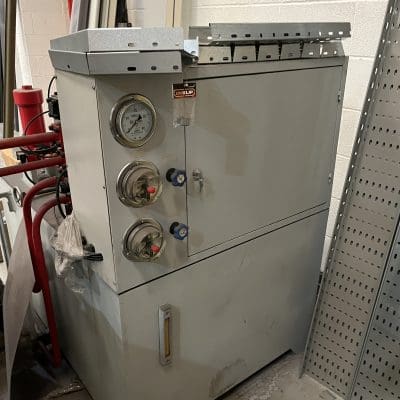

  • 1: BRADBURY / PUMA ‘EPCO‘ Automatic Hydraulic Vertical Downstroking Mild Steel Sheet Fed “Georgian effect” Indentation Press, Serial No, DUS-011-6-4, With Digital Control Panel, Hydraulic Power Pack and One Pair of Formers, 9.8 Tonnes Pressure / 1000KN, 870mm x 790mm Platen size, 500mm Maximum Opening Height (NOTE not currently operated regularly)

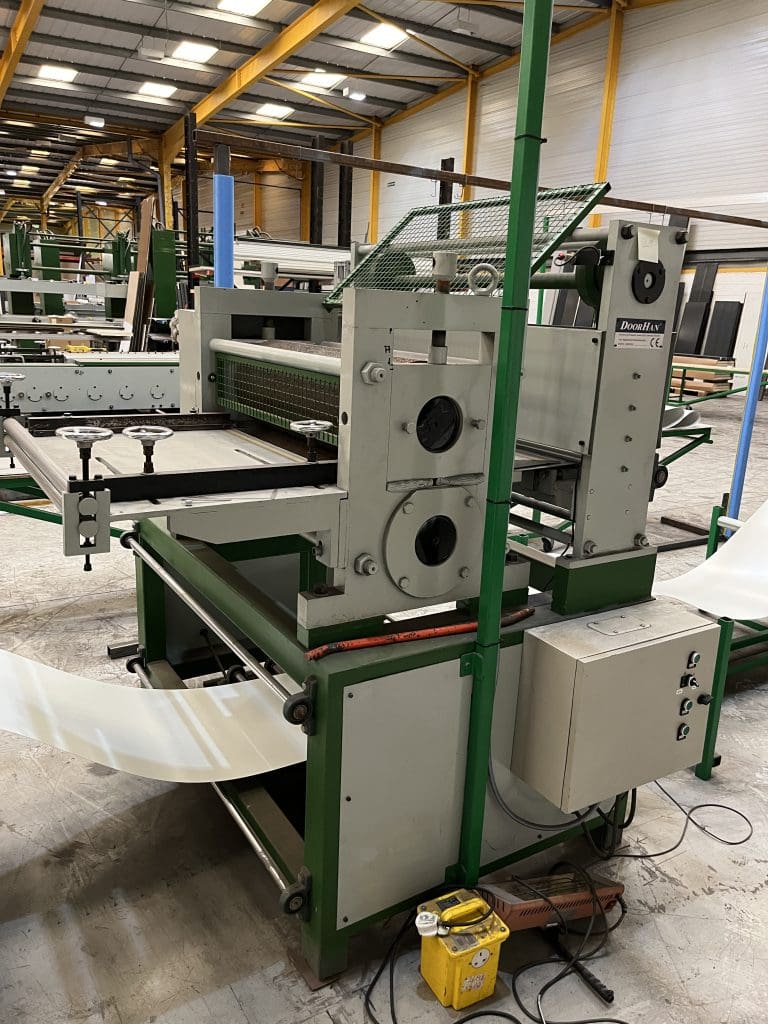

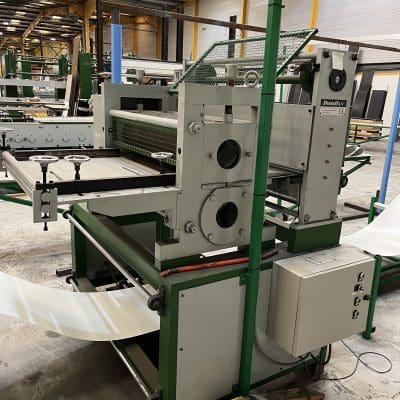

  • 1: BRADBURY / PUMA ‘Fingersafe’ Automatic Electro-Mechanical Chain Driven 2-Sided Edge Roll Forming Machine, Serial No. DUS-011-6-5, with 4: Pairs of 10mm width Small Rib Forming Rolls and 3: Pairs of 20mm width Large Rib Forming Rolls, 15: Pairs of Edge Forming Rolls and 5 Pairs of Return Edge Forming Rolls for each side, Maximum Sheet Thickness 0.5mm Alloy / Mild Steel, Maximum Sheet Width 650mm
  • 1: DOORHAN Steel Framed Mobile Panel Pre-Press Setting Up Table

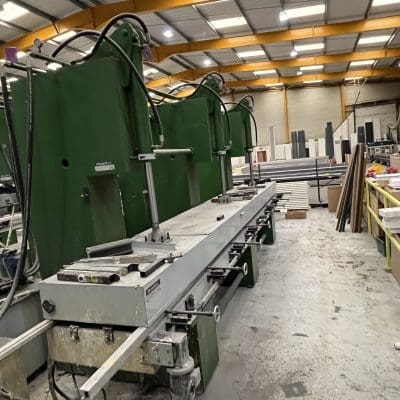

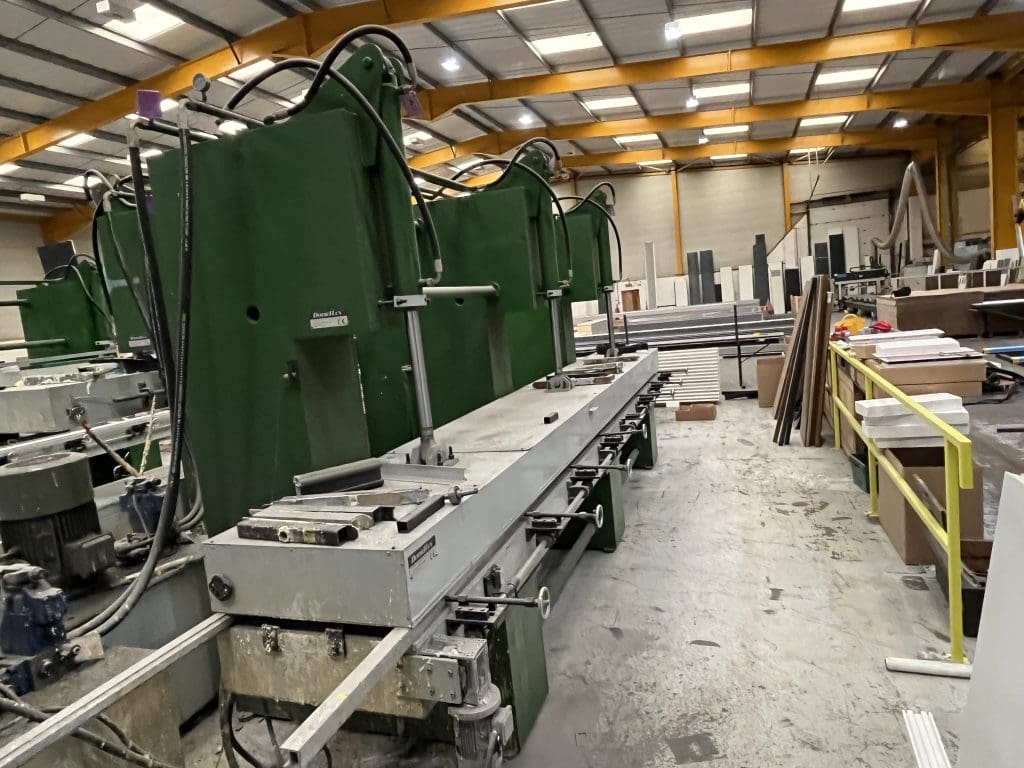

  • 3: HENNECKE OMS ’100 Process’ Automatic Hydraulic Polyurethane (PU) Foam Panel Injection/ Fabrication Downstroking Presses, Serial Numbers DUS-011-6-7, DUS-011-6-8 and DUS-0110609, Each with 1: Hydraulic Power Pack and 3 Vertical Hydraulic Rams, 1: Control Cabinet, 6100mm x 750mm Platen Size x 550mm Maximum Opening Height, with Electric Heated Top & Bottom Platens to Approximately 35ºC, Approximately 14 minutes PU curing dwell time

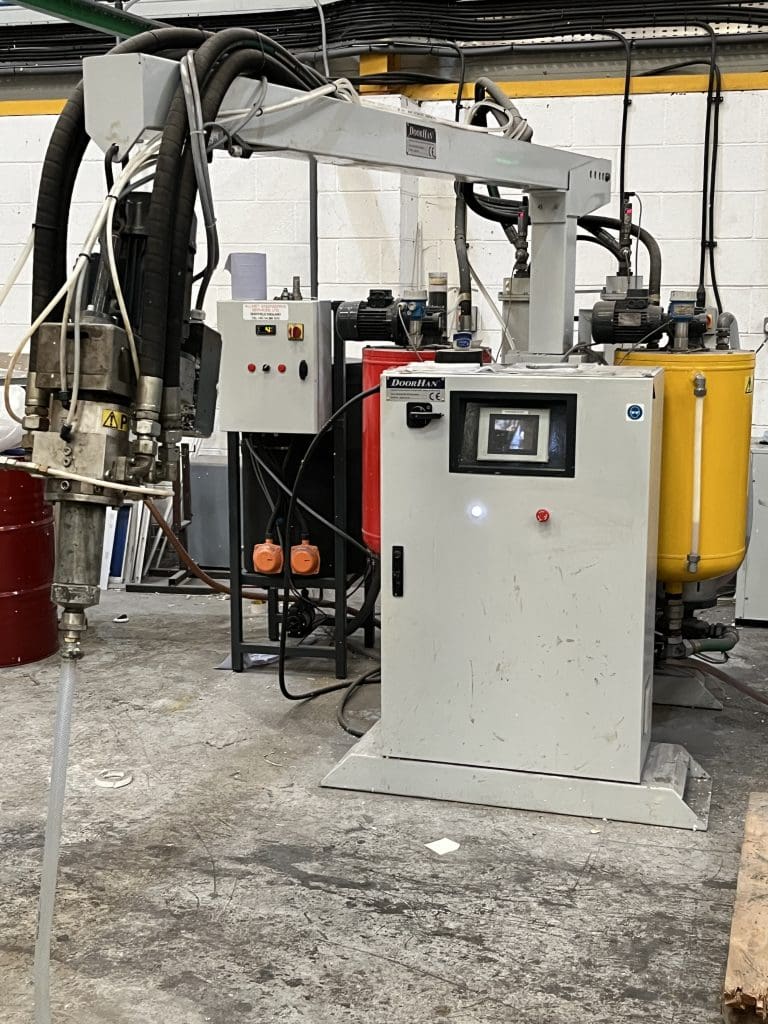

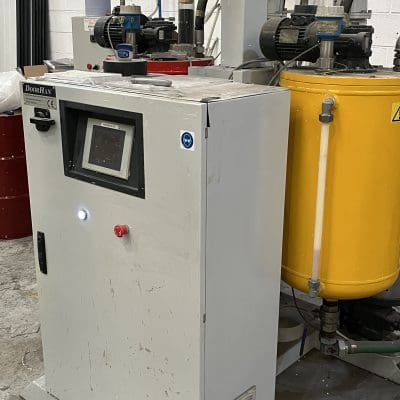

  • 1: HENNECKE OMS ‘100’ Automatic Polyurethane (PU) Foam Mixing & Injecting Machine, Serial No. DUS-011-6-10, (alternately serving each of the 3 Foam Panel Fabrication Presses), with 1: Heated and Chilled Mixing Head with delivery hose and nozzle, 1: “Poly” and 1: “Iso Resin” Dosing Heads, Water Purging StationWith 1: ICS COOL ENERGY ‘DD0MA00789 i-Chiller Compact’ Water Chilling Unit, Serial No. 2200346809 (2019), 1: FINI S.A. ‘RD6A/AC’ Refrigerated Air Dryer, Serial No. 170001555 (2017) and 1: TOOL-TEMP ‘TT-181’ Tool Heater,Serial No. 318-6159-11 (2018)

Subject to availability


  • Removal Deadline: Friday 29 September 2023, 5:00pm Strictly by appointment only
  • Removal Hours: Monday 25 – Friday 29 September 2023, 9:00am – 5:00pm BST, Strictly by prior appointment only
  • Collection is only permitted once a paid in full invoice has been received
  • This site will have no electrical power or forklift trucks
  • The buyer and or their removal contractor must supply their own lifting equipment, method statements and risk assessments, copies of all relevant insurances documents and operator licenses must be supplied and approved ahead of any item being dismantled or moved in accordance with Health & Safety policies. Site attendance for the duration of the removal process to be confirmed and agreed in advance
  • All parties attending site will be subject to an induction exercise which will last in the order of 15 minutes. Access will not be granted until completion
  • Anyone attending site will be required to wear the relevant PPE workwear including Hi-Viz Vest/Jacket and Safety Footwear
